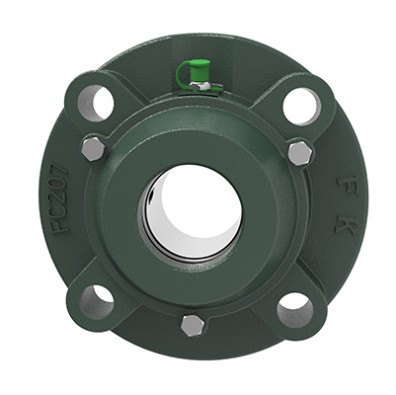

UCCFC200 Series 4-Bolt Round Bearing Housing
Four-bolt units installed where concentricity is required. Two set screws 120° apart in inner ring lock unit securely to shaft.
Features one-piece cast iron housing, solid base, wide inner ring bearing, dual heavy-duty contact-type seals, steel plate slingers on sides for dust exclusion, full self-alignment, grease fitting for adding lubricant.
Price: US $1.65-56.65 / Piece | 200 Piece/Pieces (Min. Order)
- Product Details
Materials of our four bolt flange bearings:
|
Housing Material |
HT200 Gray Cast Iron (ASTM A48 Class 30), Ductile iron |
|
Base |
Hollow & Solid |
|
Rings and Balls |
52100 Chrome steel |
|
Set screw |
1045 carbon steel |
|
Eccentric collar |
1045 carbon steel |
|
Retainer & Flinger |
cold rolled steel |
|
Seals |
NBR (metal backed nitrile rubber excluder seal) |
|
Lubrication |
Chevron SRI 2 grease |
| Unit NO. | Dimensions mm in. | Bolt Size mm inch | Bearing No. | Housing No. | Weight(kg) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | a | p | e | i | s | j | k | g | f | t | B | n | |||||
| UCCFC209 | 45 | 160 | 132 | 93.3 | 10 | 16 | 12 | 14 | 26 | 105 | 55 | 49.2 | 19 | M14 | UC209 | CFC209 | 3.1 |
| UCCFC209-26 | 1-5/8 | 6-19/64 | 5-13/64 | 3-43/64 | 25/64 | 5/8 | 15/32 | 35/64 | 1-1/32 | 4.13 | 2-11/64 | 1.94 | 0.75 | 1/2 | UC209-26 | CFC209 | 3.2 |
| UCCFC209-27 | 1-11/16 | 6-19/64 | 5-13/64 | 3-43/64 | 25/64 | 5/8 | 15/32 | 35/64 | 1-1/32 | 4.13 | 2-11/64 | 1.94 | 0.75 | 1/2 | UC209-27 | CFC209 | 3.16 |
| UCCFC209-28 | 1-3/4 | 6-19/64 | 5-13/64 | 3-43/64 | 25/64 | 5/8 | 15/32 | 35/64 | 1-1/32 | 4.13 | 2-11/64 | 1.94 | 0.75 | 1/2 | UC209-28 | CFC209 | 3.12 |
| UCCFC210 | 50 | 165 | 138 | 97.6 | 10 | 16 | 12 | 14 | 28 | 110 | 59 | 51.6 | 19 | M14 | UC210 | CFC210 | 3.36 |
| UCCFC210-29 | 1-13/16 | 6-1/2 | 5-7/16 | 3-27/32 | 25/64 | 5/8 | 15/32 | 35/64 | 1-7/64 | 4.33 | 2-23/64 | 2.03 | 0.75 | 1/2 | UC210-29 | CFC210 | 3.48 |
| UCCFC210-30 | 1-7/8 | 6-1/2 | 5-7/16 | 3-27/32 | 25/64 | 5/8 | 15/32 | 35/64 | 1-7/64 | 4.33 | 2-23/64 | 2.03 | 0.75 | 1/2 | UC210-30 | CFC210 | 3.43 |
| UCCFC210-31 | 1-15/16 | 6-1/2 | 5-7/16 | 3-27/32 | 25/64 | 5/8 | 15/32 | 35/64 | 1-7/64 | 4.33 | 2-23/64 | 2.03 | 0.75 | 1/2 | UC210-31 | CFC210 | 3.38 |
| UCCFC210-32 | 2 | 6-1/2 | 5-7/16 | 3-27/32 | 25/64 | 5/8 | 15/32 | 35/64 | 1-7/64 | 4.33 | 2-23/64 | 2.03 | 0.75 | 1/2 | UC210-32 | CFC210 | 3.34 |
| UCCFC211 | 55 | 185 | 150 | 106.1 | 13 | 19 | 12 | 15 | 31 | 125 | 63 | 55.6 | 22.2 | M16 | UC211 | CFC211 | 4.77 |
| UCCFC211-32 | 2 | 7-9/32 | 5-29/32 | 4-3/16 | 33/64 | 3/4 | 15/32 | 19/32 | 1-7/32 | 4.92 | 2-1/64 | 2.19 | 0.87 | 5/8 | UC211-32 | CFC211 | 4.92 |
| UCCFC211-33 | 2-1/16 | 7-9/32 | 5-29/32 | 4-3/16 | 33/64 | 3/4 | 15/32 | 19/32 | 1-7/32 | 4.92 | 2-1/64 | 2.19 | 0.87 | 5/8 | UC211-33 | CFC211 | 4.86 |
| UCCFC211-34 | 2-1/8 | 7-9/32 | 5-29/32 | 4-3/16 | 33/64 | 3/4 | 15/32 | 19/32 | 1-7/32 | 4.92 | 2-1/64 | 2.19 | 0.87 | 5/8 | UC211-34 | CFC211 | 4.81 |
| UCCFC211-35 | 2-3/16 | 7-9/32 | 5-29/32 | 4-3/16 | 33/64 | 3/4 | 15/32 | 19/32 | 1-7/32 | 4.92 | 2-1/64 | 2.19 | 0.87 | 5/8 | UC211-35 | CFC211 | 4.75 |
| UCCFC212 | 60 | 195 | 160 | 113.1 | 17 | 19 | 12 | 15 | 36 | 135 | 74 | 65.1 | 25.4 | M16 | UC212 | CFC212 | 5.77 |
| UCCFC212-36 | 2-1/4 | 7-11/16 | 6-1 9/64 | 4-29/64 | 43/64 | 3/4 | 15/32 | 19/32 | 1-27/64 | 5.32 | 2-27/64 | 2.56 | 1 | 5/8 | UC212-36 | CFC212 | 5.9 |
| UCCFC212-37 | 2-5/16 | 7-11/16 | 6-1 9/64 | 4-29/64 | 43/64 | 3/4 | 15/32 | 19/32 | 1-27/64 | 5.32 | 2-27/64 | 2.56 | 1 | 5/8 | UC212-37 | CFC212 | 5.82 |
| UCCFC212-38 | 2-3/8 | 7-11/16 | 6-1 9/64 | 4-29/64 | 43/64 | 3/4 | 15/32 | 19/32 | 1-27/64 | 5.32 | 2-27/64 | 2.56 | 1 | 5/8 | UC212-38 | CFC212 | 5.75 |
| UCCFC212-39 | 2-7/16 | 7-11/16 | 6-1 9/64 | 4-29/64 | 43/64 | 3/4 | 15/32 | 19/32 | 1-27/64 | 5.32 | 2-27/64 | 2.56 | 1 | 5/8 | UC212-39 | CFC212 | 5.68 |
| UCCFC213 | 65 | 205 | 170 | 120.2 | 16 | 19 | 14 | 15 | 36 | 145 | 75 | 65.1 | 25.4 | M16 | UC213 | CFC213 | 6.68 |
